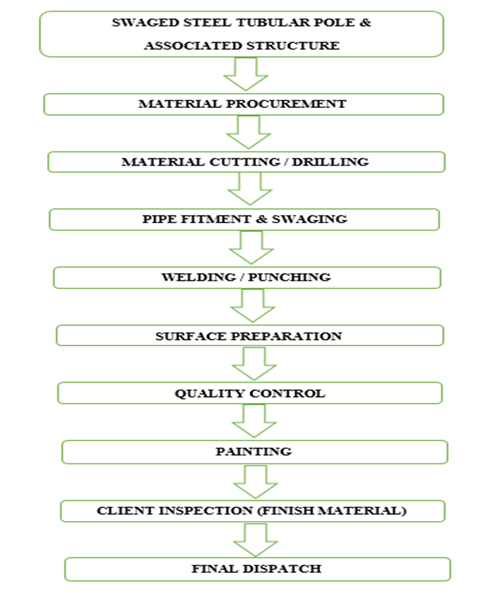

Swaged poles Manufacturing Process
Swaged poles manufactured from ERW /Welded tubes of suitable lengths swaged & Joint together. No circumferential joints shall be permitted in the individual tube length of poles. The longitudinal welds shall be staggered at each swaged joint. Swaging is done by Hydraulic Power Press Machine. A circumferential weld shall be deposited at the upper end of the joint at a slope of approximately 45 degree poles are manufactured by us normally confirm to IS: 27 13 (Part- I-III)/1980 and Bottom Portion of the pole shall be galvanized as per IS: 4736/1986 and latest amendment thereof. Minimum Zinc Coating shall be 360 gms per sq. mtr. Zinc Thickness shall be minimum 51 microns. Special sizes can be also be manufactured by us as per customer drawings or requirements.

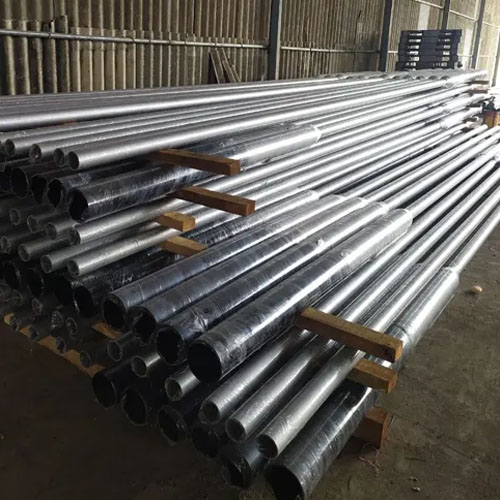

Swaged Steel Tubular Poles, with Associated Structure Overall Length: 7mtr -13 Mtr
We provide this types of
SP-10, SP-21, SP-23, SP-33, SP-55, SP-72

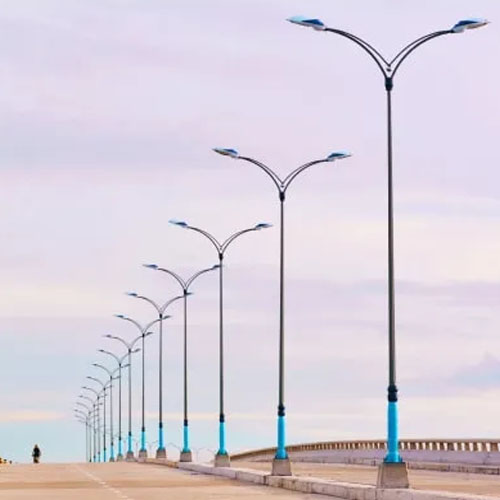

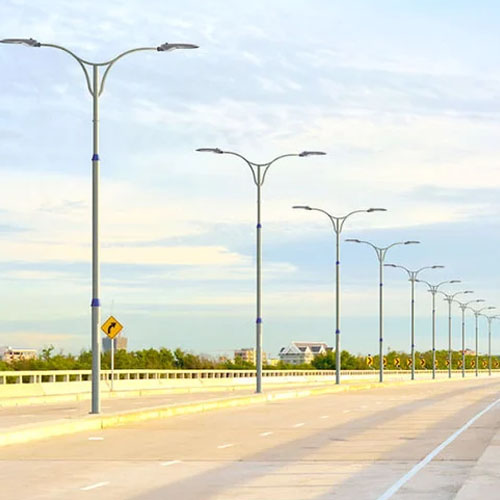

Street Light Tubular Poles, with Associated Structure Overall Length: 7mtr -13 Mtr

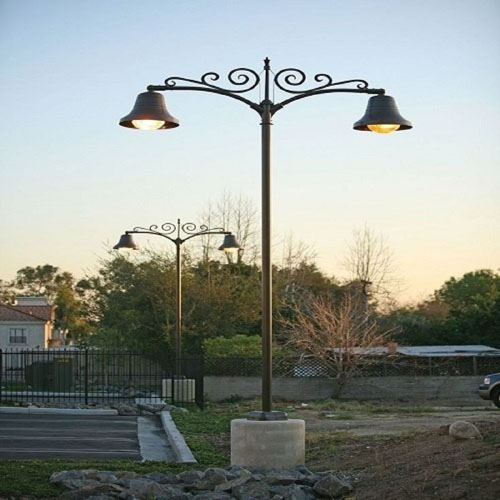

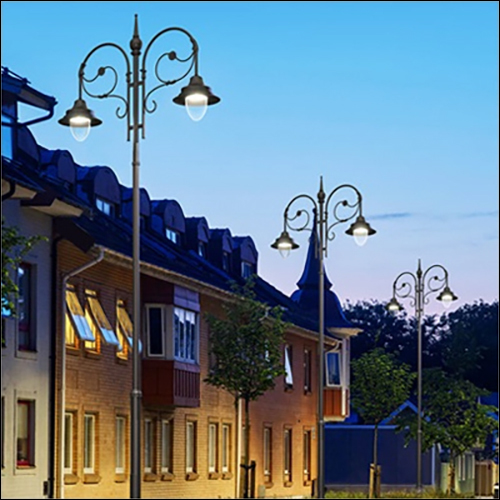

Decorative Pole
